| Product SKUs |
 |
| CSE-826BAC4-R920LPB |

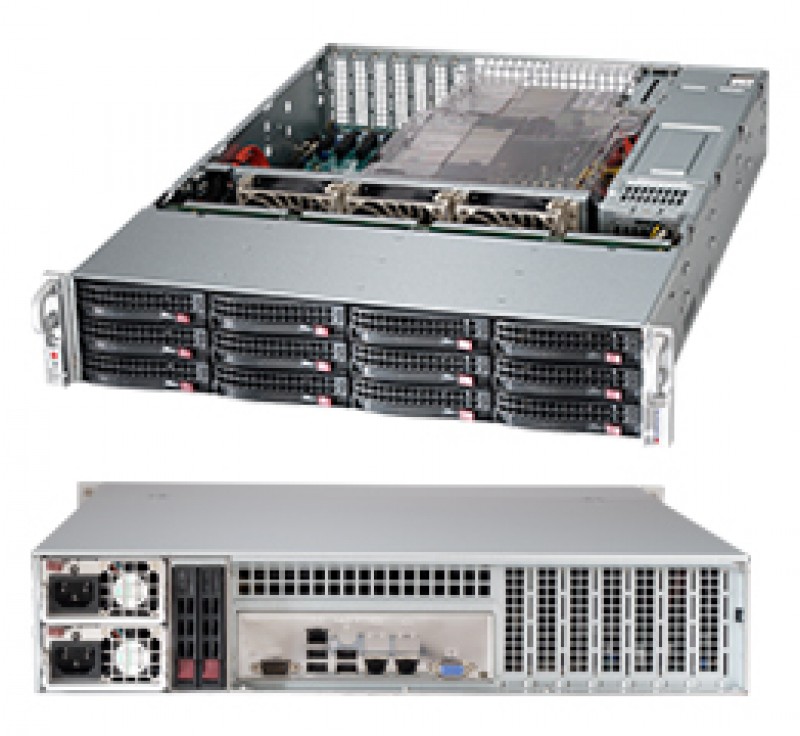

- SuperChassis 826BAC4-R920LPB
|
| |
| Form Factor |
|
|
2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
|
| |
| Processor Support |
|
|
Dual and Single Intel® and AMD processors
|
| |
| Dimensions |
|
| Height |
|
| Width |
|
| Depth |
|
| Net Weight |
|
| Gross Weight |
|
| Packaging (W x H x L) |
- 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
|
| Available Color |
|
| |
| Expansion Slots |
|
- 7 low-profile expansion slot(s)
|
| |
| Drive Bays |
|
- 12 x 3.5" hot-swap drive bay
- Optional 2 x 2.5" hot-swap drive bay
- 8x SAS3 12Gbps and 4x Hybrid (NVMe/SAS3) 3.5" HDD
|
| |
| Backplane |
|
- 12-port 2U SAS3 12Gbps hybrid backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices
|
| |
| Front Panel |
|
| Buttons |
- Power On/Off button
- System Reset Button
|
| LEDs |
- 2 Network Activity LEDs
- Fan Fail/System Over Heat LED
- HDD activity LED
- Power Status LED
- Unit Identification (UID) LED
|
|
| Systems Cooling |
|
| Fans |
- 3 x 8cm high-performance PWM fan(s)
- Optional 5 x 6cm 4pin high performance fan(s)
|
| |
| System Monitoring |
|
|
|
| |
| Operating Environment (System) |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| Power Supply |
| 1U 920W Redundant Platinum Super Quiet power supply W/PMbus |
| Power Efficiency |
|
| Total Output Power and Input |
- 920W with Input 100 - 240Vac
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
- Max: 75A / Min: 1A (100Vac - 240Vac)
|
| +5Vsb |
|
| Power Distributor |
- PDB-PT826-8824
- O/P: 12V/135A
- +5V Max: 40A
- +3.3V Max: 24A
- -12V Max: 0.6A
|
| Certification |
 Platinum Certified
|
| |
| Regulatory (Power Supply) |
|
| Power Supply Safety / EMC |
- BSMI
- CCC
- CE/EMC
- FCC class B
- TUV/CB
- UL/CUL
|
|
