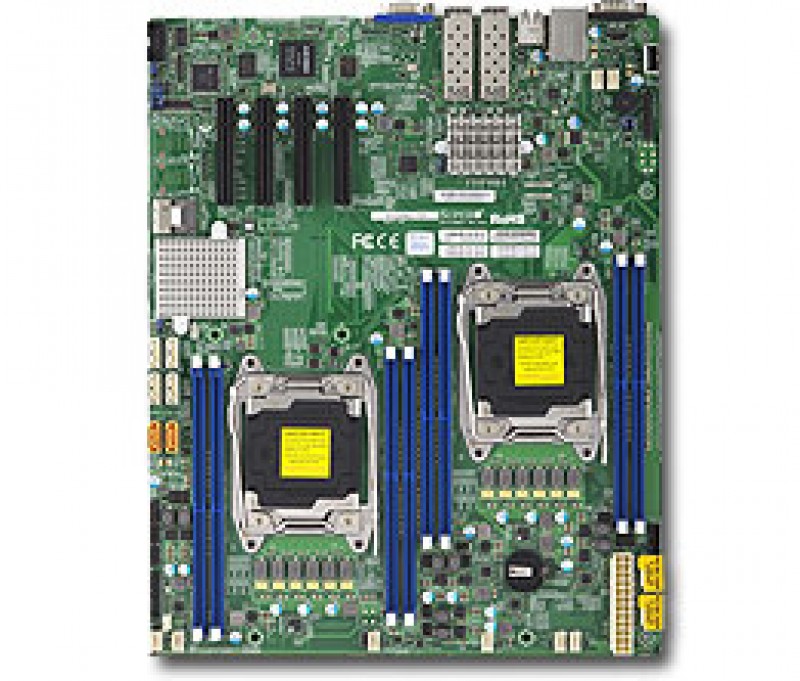

Supermicro MBD-X10DRD-iTP, Dual SKT, Intel C612 Chipset, SATA, 2x10Gb SFP+, IPMI Bulk

Name: Supermicro MBD-X10DRD-iTP, Dual SKT, Intel C612 Chipset, SATA, 2x10Gb SFP+, IPMI Bulk
Brand: Supermicro
SKU: MBD-X10DRD-iTP-B
Price: 2277.82 PLN
Availability: InStock

Producent:

Supermicro

Kod produktu:

MBD-X10DRD-iTP-B

EAN:

672042178117

Dostępność: 1 szt. | Dostawa: zapytaj

1851.89 zł netto2277.82 zł brutto

Ilość:

Opis

Specyfikacja

Opinie (0)

Product SKUs

MBD-X10DRD-iTP -O	X10DRD-iTP (Standard Retail Pack)
MBD-X10DRD-iTP -B	X10DRD-iTP (Bulk Pack)


Physical Stats

Form Factor	E-ATX
Dimensions	13.05" x 10.5" (33.1cm x 26.7cm)


Processor/Cache

CPU	Intel® Xeon® processor E5-2600 v4^†/ v3 family (up to 145W TDP**) Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 22 Cores^† / Up to 55MB^† Cache
System Bus	QPI up to 9.6 GT/s
Note	^† BIOS version 2.0 or above is required
Note	** Motherboard supports this maximum TDP. Please verify your system can thermally support.


System Memory

Memory Capacity	8x 288-pin DDR4 DIMM slots Up to 1TB^† ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type	2400^†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB 3DS LRDIMM: 128GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors


On-Board Devices

Chipset	Intel® C612 chipset
AHCI SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
SCU SATA	SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® 82599ES Dual port 10G SFP+ Virtual Machine Device Queues reduce I/O overhead Supports 10G SFP+ 1x Realtek RTL8201N PHY (dedicated IPMI)
Video	ASPEED AST2400 BMC


Input / Output

SATA	10x SATA3 (6Gbps) ports
LAN	2x 10 Gigabit Ethernet SFP+ ports 1x RJ45 Dedicated IPMI LAN port
USB	7x USB 2.0 ports total (4 rear, 2 via headers, 1 Type A)
Video	1x VGA port
Serial Port / Header	2x COM Ports (1 rear, 1 header)
DOM	2x SuperDOM (Disk on Module) ports
TPM	1x TPM Header


Chassis (Optimized for X10DRD-iTP )

1U Chassis:	SC815TQ-R500CB SC514-505 SC514-441 SC514-R400C
Important Chassis Notes	To support the new generation Intel^® Xeon^® processor-based motherboards, Revision M chassis is recommended. Please talk to your sales representative for details. Optional I/O shield MCP-260-00095-0N will require in 1U chassis

Expansion Slots

PCI-Express	4x PCI-E 3.0 x8 slots


System BIOS

BIOS Type	128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features	Plug and Play (PnP) PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7.1 UEFI 2.3.1


Management

Software	Intel Node Manager IPMI 2.0 NMI SuperDoctor® 5 Watch Dog
Power Configurations	ACPI Power Management Power-on mode for AC power recovery


PC Health Monitoring

Voltage	Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, +3.3V Standby, VBAT, Memory Voltages. 6 Phase-switching voltage regulator
FAN	8x 4-pin fan headers (up to 8 fans) 8x fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x Fan Connectors Thermal Monitor 2 (TM2) support PECI
LED	CPU / System Overheat LED Suspend static indicator LED UID/Remote UID
Other Features	RoHS



Operating Environment

Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non-Operating Relative Humidity Range

Category	Server
Form Factor	E-ATX
Dimensions	13" x 10.5"
CPU Socket	LGA 2011 (Socket R3)
# of CPU sockets	2
Supported CPU's	Intel Xeon E5-2600v3 Intel Xeon E5-2600v4
Chipset	Intel C612 Wellsburg
Memory Type	DDR4 ECC 3DS LRDIMM DDR4 ECC LRDIMM DDR4 ECC RDIMM
Memory Speed	2400 MHz 2133 MHz 1866 MHz 1600 MHz
# of DIMM's	8
Max Memory Size	1024 GB
Integrated GPU	Aspeed AST2400
# of PCIe x8 3.0	4
# of USB Ports	4 x USB 2.0 (rear) 2 x USB 2.0 (header) 1 x USB 2.0 Type A
# of SATA Ports	10
# of SATA DOM power	2
Storage Controllers	6 x AHCI iSATA 6Gb/s 4 x sSATA 6Gb/s
Integrated RAID	0,1,5,10
# of Serial Ports	1 x Fast UART 16550 (rear) 1 x Fast UART 16550 (header)
# of 10GbE Ports	2 x SFP+
Network Controllers	Intel 82599ES Dual port 10Gigabit SFP+
Integrated BMC	IPMI Dedicated RJ45
BMC chip	Aspeed AST2400
TPM	1 x TPM 1.2 20-pin Header
